300 Series

new_Desktop_Main_Front_Image_300_Series-1

Building on the hugely popular and universally acclaimed 100 Series, the 300 Series raises the performance bar further still…

The new 300 Series features multiple upgrades over the entry-level 100 Series, all designed to improve both audio performance and aesthetics, befitting of its more premium status. Bespoke new drive units have been designed in tandem to offer seamless tonal integration in addition to low distortion and high power handling benefits. The 28mm aluminium dome tweeter also features our WDT Wide Dispersion Technology™ and a re-designed 130mm aluminium mid-bass driver uses a ceramic aluminium sandwich cone and long throw motor system. The seamless cabinet enclosures boast an inert 18mm high density MDF material with proprietary internal bracing technology to reduce cabinet colouration. They’re finished in attractive real open grain walnut wood veneer, piano grade high gloss black or white lacquer options.

The result is a premium-finished package which offers a refined, accurate and above all, enjoyable musical experience. Embodying all the qualities Acoustic Energy are famous for… and designed for the love of music.

Acoustic Energy AE300 (Walnut)

AE300

The AE300 is a new compact stand-mount loudspeaker suitable for small to medium sized rooms. Following on from the award winning AE100, it offers a significant step up in both audio quality, materials, and cabinet finish.

Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 25mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.

The result is an audio product with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years.

Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE300 will easily integrate within any home décor placed on speaker stands or bookshelves.

Acoustic Energy AE309 (Walnut)

AE309

The AE309 is a new slim-line floor-standing loudspeaker with compact dimensions, suitable for medium to large sized rooms. Similar to the AE300 comparison, the AE309 offers higher levels of performance and finish than its 100 Series equivalent.

The AE309 uses two latest generation 130mm mid-bass drive units. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 25mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

The inert, 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean, undistorted bass performance. The base of the cabinet is pre-loaded with an inert mass material which adds damping and reduces cabinet colouration. The mass loading coupled with 8mm floor spikes help stability and provide a solid foundation for the drive units to operate without resonances from the cabinet interacting with the floor surface.

The result of this latest drive unit technology and enclosure design is a slim-line, powerful floor-standing loudspeaker for the discerning listener when refined audio quality coupled with elegant aesthetics are paramount.

Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE309 will easily integrate within any home décor.

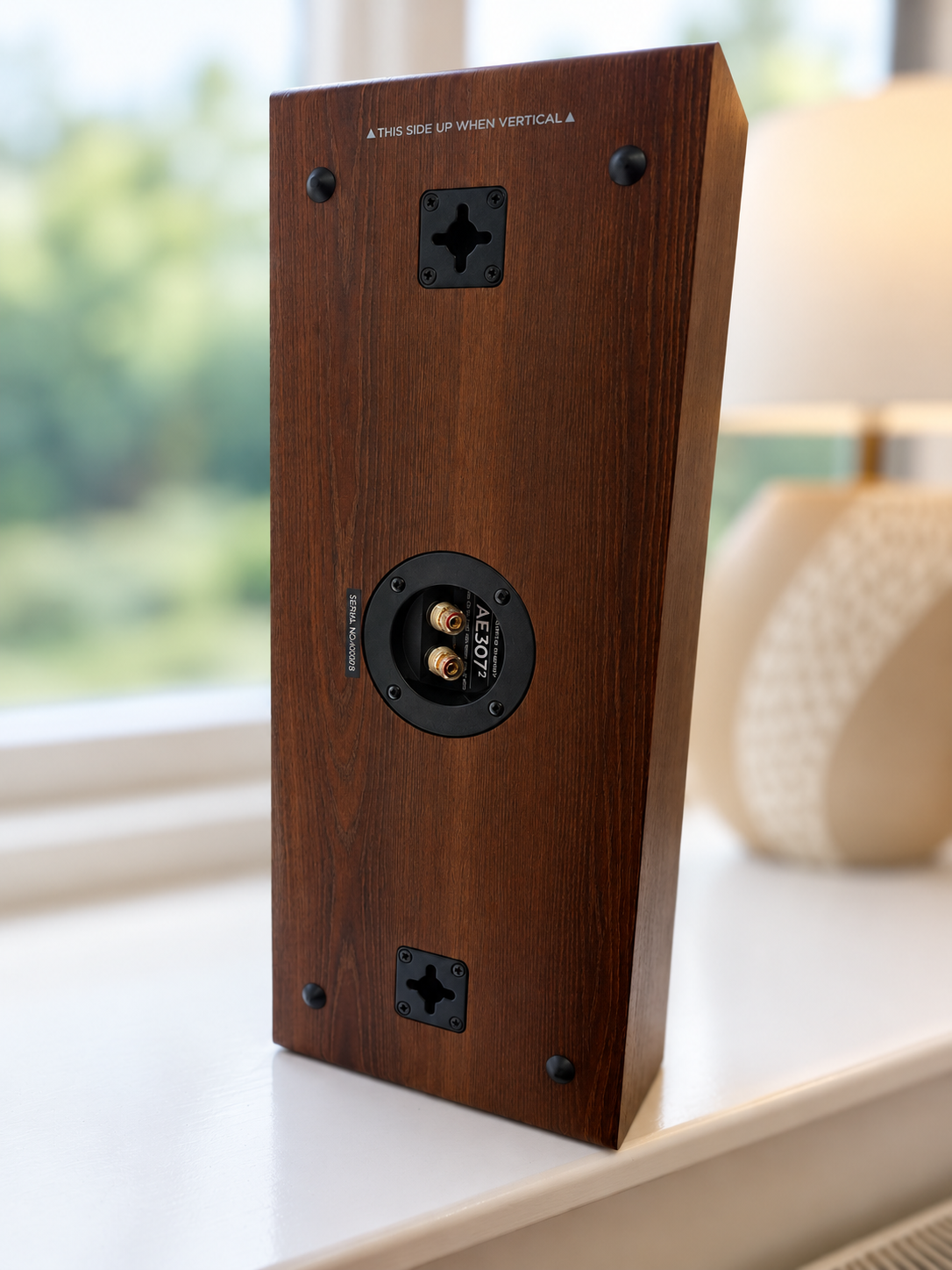

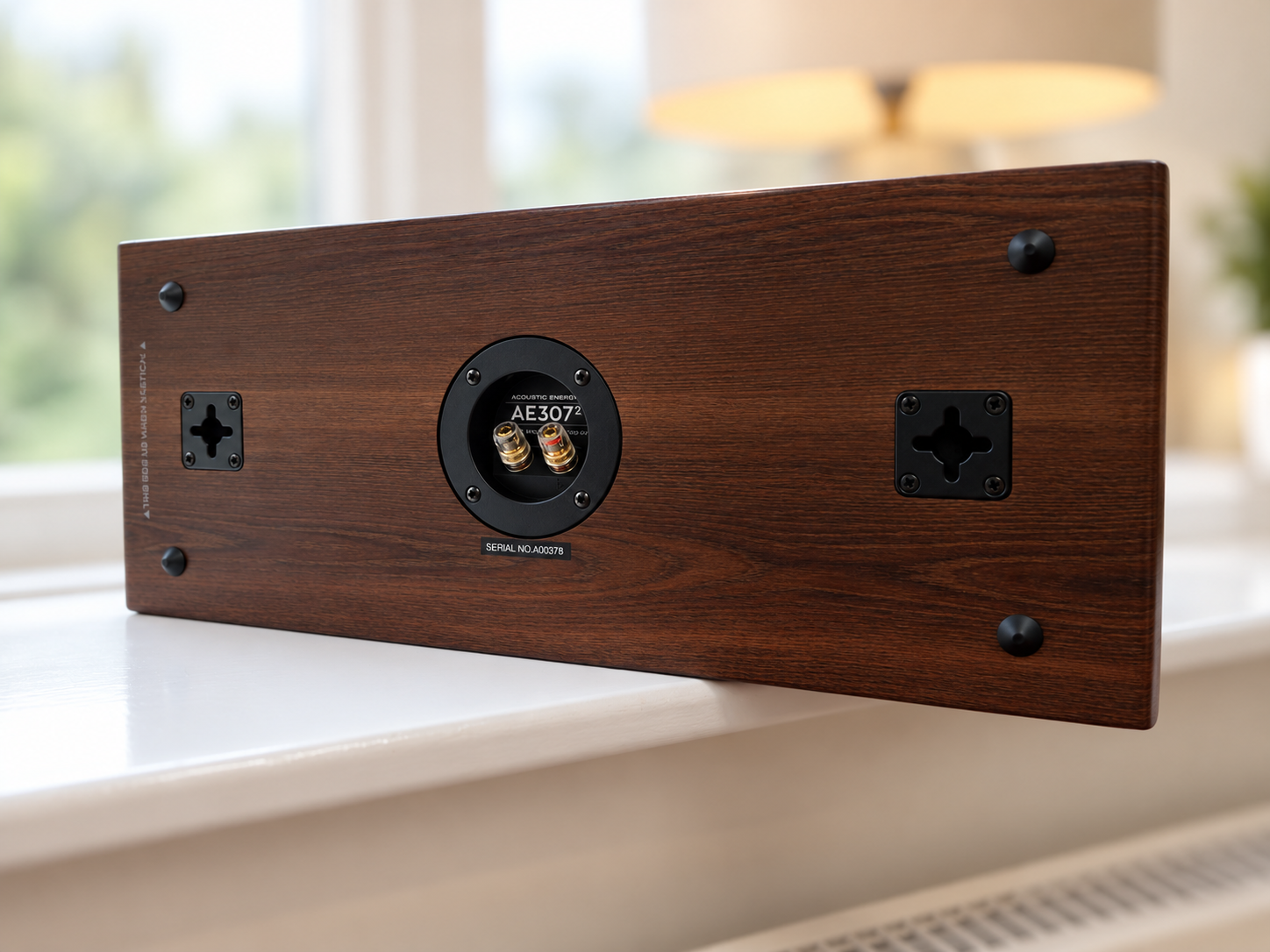

AE307 Centre (Walnut, No Grille)

AE307

The AE307 is a new centre channel loudspeaker suitable for home cinema and multi-channel music systems.

The AE307 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment. This is particularly beneficial to ensure constant audio performance across the front channels of your system when using the AE309 or AE300’s for front left and right channels.

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance. The result is a centre channel with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years.

Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE307 fits easily into most AV cabinets and stands integrating within any home décor.

AE308 Subwoofer (Walnut)

AE308

The AE308 is an all-new subwoofer from Acoustic Energy.

Designed to complement and integrate seamlessly with the other models in the 300 Series, the AE308 offers prodigious performance in both Hi-Fi and AV implementations; making use of a new 500 Watt (RMS) amplifier mated to a 12” high-excursion doped and stiffened pulp-fibre driver, the AE308 also features DSP modes to tailor performance perfectly to desired usage, a first for AE.

In Music mode the AE308 will perform in a balanced, accurate manner, extending low frequencies of the main speakers naturally and seamlessly down to 26Hz (+/-6dB). In Movie mode there will be additional “slam” on offer to aid explosive movie soundtracks in AV systems. Finally Impact mode trades outright extension for maximum volume and serious impact, more akin to a club set-up for when you really want to party hard!

The AE308 is available in attractive real wood American walnut veneer, piano gloss black or white lacquer to match the other 300 Series models and has sturdy carpet-piercing spikes which come with convenient rubber caps for use on hard flooring.

TECHNICAL INFORMATION

TWEETER

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion.  However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

DRIVERS

Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high force, long throw motor system. This new driver boasts improved dispersion, extended bass slam and overall power handling.

CABINET

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker* augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.

* The AE308 is a sealed box with no slot port.

SPECIFICATIONS


Drive Unit:


Tweeter:

Frequency Range:
Sensitivity:
Peak SPL:
Power Handling:
Crossover Frequency:
Impedance:
Design:
Inputs:

Phase:
Amplifier Type:
Grilles:

Dimensions (mm):
Weight:
Finishes:

AE300
130mm ceramic aluminium sandwich cone
25mm dome
45Hz – 30kHz
86dB
112dB
100w
2.8kHz
6ohms
2 way




Slim, cloth magnetic fit
300 x 175 x 260 (HxWxD)
6.5kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE309
130mm ceramic aluminium sandwich cone
25mm dome
38Hz – 30kHz
89dB
115dB
175w
296Hz / 2.56kHz
6ohms
2.5 way




Slim, cloth magnetic fit
900 x 175 x 280 (HxWxD)
22kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE307
130mm ceramic aluminium sandwich cone
25mm dome
42Hz – 30kHz
89dB
115dB
175w
296Hz / 2.56kHz
6ohms
2 way




Slim, cloth magnetic fit
175 x 460 x 260 (HxWxD)
9kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE308
12″ High-excursion doped and stiffened paper cone

26Hz-120Hz +/- 6dB


500w
40-120Hz rotary control

Sealed box, downward facing driver
Low level stereo RCA, high level stereo binding posts, LFE RCA
0-180 degree rotary control
Class D

360 x 360 x 360mm (HxWxD)
16.5kg
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer


Drive Unit:


Tweeter:

Frequency Range:
Sensitivity:
Peak SPL:
Power Handling:
Crossover Frequency:
Impedance:
Design:
Grilles:

Dimensions (mm):
Weight:

Finishes:

AE300
130mm ceramic aluminium sandwich cone
25mm dome
45Hz – 30kHz
86dB
112dB
100w
2.8kHz
6ohms
2 way
Slim, cloth magnetic fit
300 x 175 x 260 (HxWxD)
6.5kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE309
130mm ceramic aluminium sandwich cone
25mm dome
38Hz – 30kHz
89dB
115dB
175w
296Hz / 2.56kHz
6ohms
2.5 way
Slim, cloth magnetic fit
900 x 175 x 280 (HxWxD)
22kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer


Drive Unit:


Tweeter:

Frequency Range:
Sensitivity:
Peak SPL:
Power Handling:
Crossover Frequency:
Impedance:
Design:

Inputs:

Phase:
Amplifier Type:
Grilles:

Dimensions (mm):
Weight:
Finishes:

AE307
130mm ceramic aluminium sandwich cone
25mm dome
42Hz – 30kHz
89dB
115dB
175w
296Hz / 2.56kHz
6ohms
2 way





Slim, cloth magnetic fit
175 x 460 x 260 (HxWxD)
9kg (each)
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE308
12″ High-excursion doped and stiffened paper cone

26Hz-120Hz +/- 6dB


500w
40-120Hz rotary control

Sealed box, downward facing driver
Low level stereo RCA, high level stereo binding posts, LFE RCA
0-180 degree rotary control
Class D

360 x 360 x 360mm (HxWxD)
16.5kg
Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE300

Drive Unit: 130mm ceramic aluminium sandwich cone
Tweeter:
25mm dome
Frequency Range: 45Hz – 30kHz
Sensitivity: 86dB
Peak SPL: 112dB
Power Handling: 100w
Crossover Frequency: 2.8kHz
Impedance: 6ohms
Design: 2 way
Grilles:
Slim, cloth magnetic fit
Dimensions (mm): 300 x 175 x 260 (HxWxD)
Weight:
6.5kg (each)
Finishes: Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE309

Drive Unit: 130mm ceramic aluminium sandwich cone
Tweeter:
25mm dome
Frequency Range: 38Hz – 30kHz
Sensitivity: 89dB
Peak SPL: 115dB
Power Handling: 175w
Crossover Frequency: 296Hz / 2.56kHz
Impedance: 6ohms
Design: 2.5 way
Grilles:
Slim, cloth magnetic fit
Dimensions (mm): 900 x 175 x 280 (HxWxD)
Weight:
22kg (each)
Finishes: Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE307

Drive Unit: 130mm ceramic aluminium sandwich cone
Tweeter: 25mm dome
Frequency Range: 42Hz – 30kHz
Sensitivity: 89dB
Peak SPL: 115dB
Power Handling: 175w
Crossover Frequency: 296Hz / 2.56kHz
Impedance: 6ohms
Design: 2 way
Grilles:
Slim, cloth magnetic fit
Dimensions (mm): 175 x 460 x 260 (HxWxD)
Weight: 9kg (each)
Finishes: Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer

AE308

Drive Unit: 12″ High-excursion doped and stiffened paper cone
Frequency Range: 26Hz-120Hz +/- 6dB
Power Handling: 500w
Crossover Frequency: 40-120Hz rotary control
Design: Sealed box, downward facing driver
Inputs:
Low level stereo RCA, high level stereo binding posts, LFE RCA
Phase:
0-180 degree rotary control
Amplifier Type:
Class D
Dimensions (mm): 360 x 360 x 360mm (HxWxD)
Weight: 16.5kg
Finishes: Piano Gloss White, Piano Gloss Black and Real Walnut wood veneer
